Oil pump smoking systems hydraulic model
Explore our range of high performance brushless pumps. They are engineered for professional RC applications where extreme pressure and smoke viscosity is demanding.

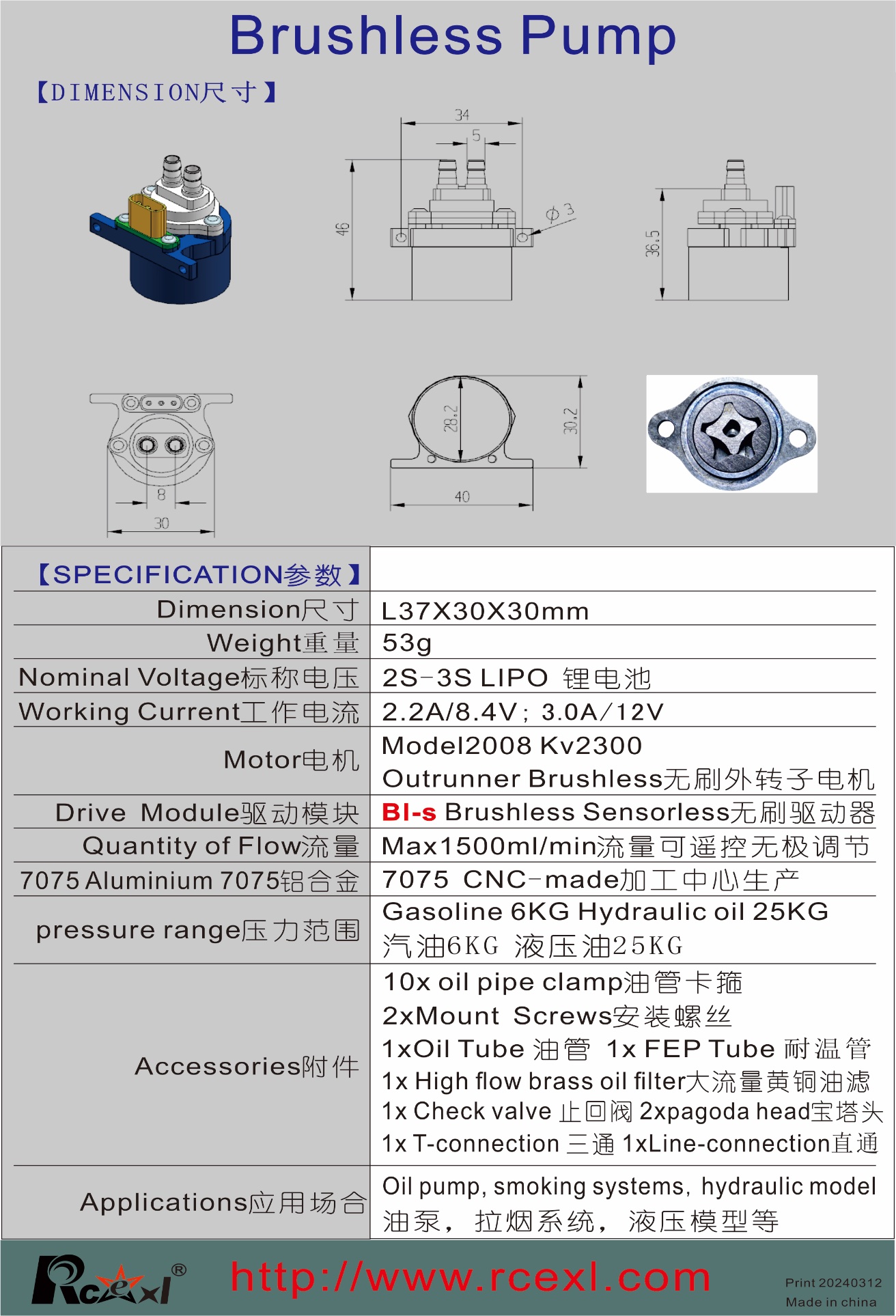

Technical Specifications
| Specification | Details |
|---|---|
| Dimension | L37 × W30 × H30mm |
| Weight | 53g |
| Nominal Voltage | 2S-3S LiPo Battery |
| Working Current | 2.2A at 8.4V / 3.0A at 12V |
| Motor | Model 2008 KV2300 Outrunner Brushless |
| Drive Module | BL-S Brushless Sensorless Controller |
| Quantity of Flow | Max 1500ml/min (Remotely infinitely adjustable) |
| Material | 7075 Aluminium (CNC machined) |
| Pressure Range | Gasoline: 6KG / Hydraulic oil: 25KG |

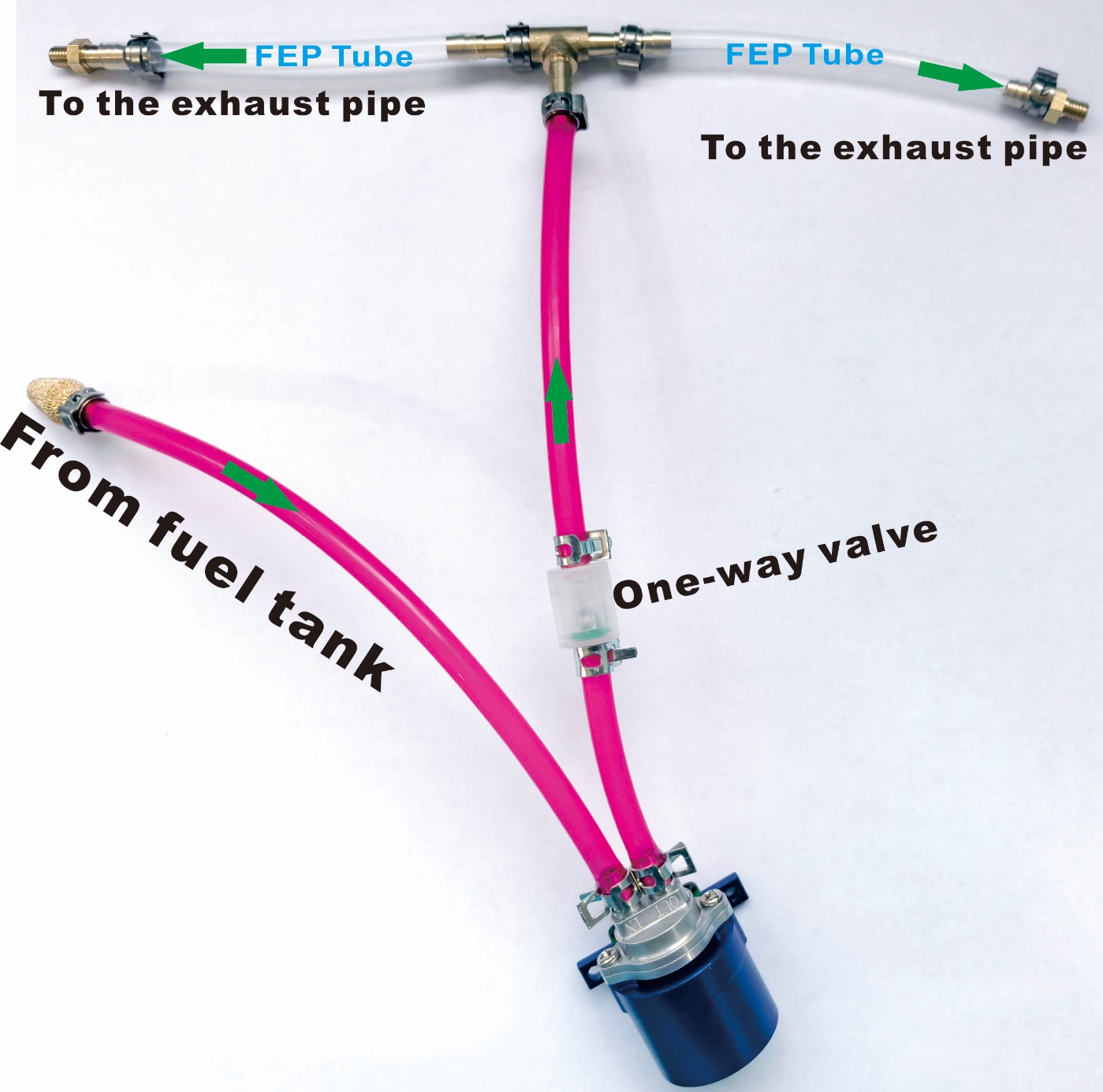

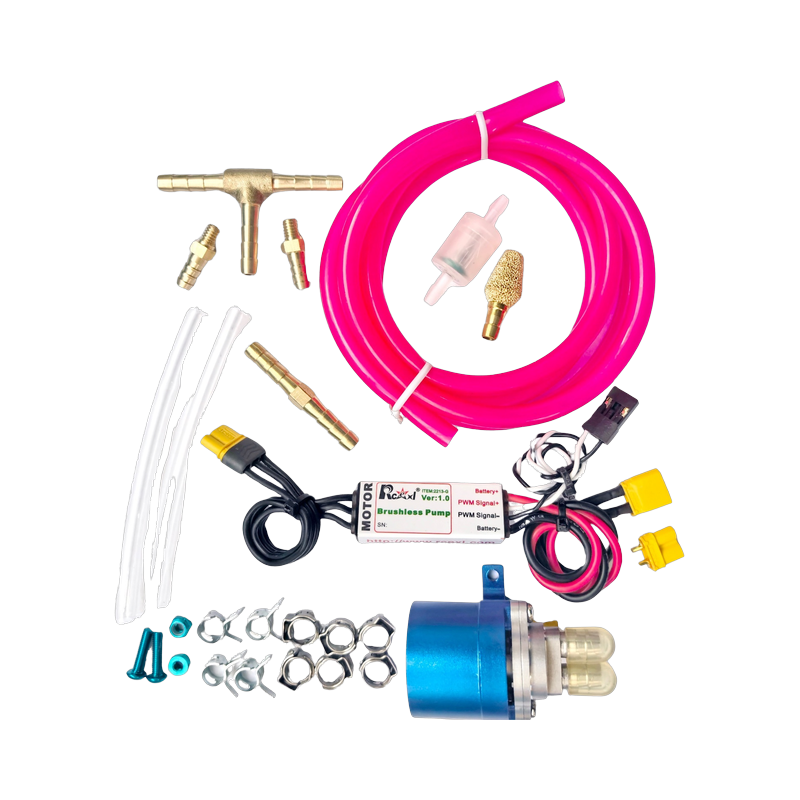

Included Accessories
- 10x Oil pipe clamp
- 2x Mount Screws
- 1x Oil Tube & 1x FEP Tube
- 1x High flow brass oil filter
- 1x Check valve
- 2x Pagoda head, 1x T-connection, 1x Line-connection
Brushless pump - Oil pump smoking system
ID: 8989-2
Brushless pump - High output hydraulic model
ID: 8989-3
Brushless pump - High pressure smoking pump
ID: 8989-4
